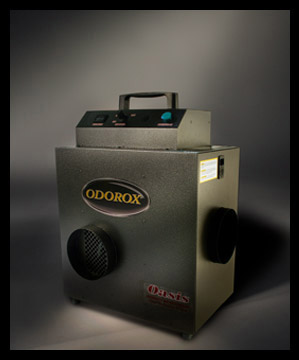

The Odorox® Oasis unit was designed for easy and unobtrusive residential applications usually in spaces up to 2500 sq.ft. (250 sq.m.) assuming a ceiling of 9ft/3m as it can be easily fixed to an existing HVAC system or for hospitality situations where the unit can be conveniently ducted into a space whilst located outside. It is an ideal unit to continuously neutralize musty smells, cooking odours, cigarette smoke, pet odours and neutralise biological pathogens as it can operate 24 hours a day, 7 days a week. It is also highly suitable for the chemically sensitive or medically compromised individual.
Oasis™ is equipped as standard with a single optic and a washable filter, a built-in fan adjustable from approximately 250 to 500 cfm, and it operates using only 1.4 Amps.
Click here for the US printable version (EU version available shortly).
|Dimensions (w, l, h)||12.1" (307mm) x 18.5" (470mm) x 25" (635mm)|
230V @ 1.4 Amps
|Control||Speed Control / Selector Switch|
|Meter||1/10 quartz hour meter|
|Mobility||HVAC / In-Duct|
|Finish||Gray powder coat|
|Noise Level||< 55 dBA|
|Number of Optics||1|
|Air inlet / Outlet||6" (152.4mm) round / 6" (152.4mm) round|
|Fan & Rating||One 630 CFM|
|Filters||One, 9" x 18"x 1" (228.6mm x 457.2mm x 25.4mm) , Washable|
EU CE. ETL Canada/US - CSA & UL Standards
